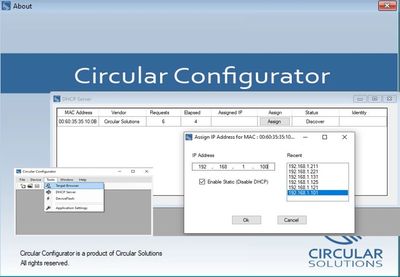

Circular configurator

Overview

All the network setup and configuration of the Circular Solutions Modules are achieved by means of the Circular Configurator device configuration tool.  This tool can be downloaded from the link below and includes the following embedded tools to simplify the setup and use of the modules:

• DHCP Server – Assign IP addresses.
• Target Browser – Scan network for EtherNet/IP devices.
• Ethernet Port Configuration – Setting IP addresses etc.
• Device Flash – Used to upgrade the firmware of Circular Solutions Modules.

Details of how to use this software are included in the Product User Manuals, found under the Products menu.

Software Requirements

Operating System   - Windows 7 (32 & 64 bit), Windows 8.1, Windows 10

Hard Disk                - 100MB

Memory                   - 1 GB
