Conveyor rip tear detection

OVERVIEW

The Belt Rip/Tear detector unit provides a highly effective means of detecting Rip and Tear conditions on conveyor belts. Should the photoelectric beam be broken, the unit will operate and issue a trip for the belt. When placed after loading and offload points on a belt, these units are able to detect most rip/tear conditions and significantly reduce the length of damaged belt.

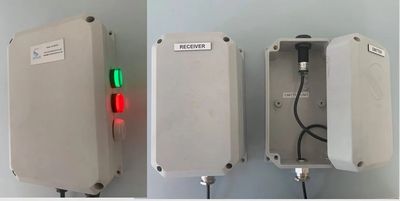

The units are housed in robust polycarbonate housings to ensure maximum resilience in the harsh and normally damp conditions around conveyor belting. Each unit consist of two sensor housings, one positioned on either side of the belt, and one control unit. The housings have an ingress protection of IP66 and an IK10 impact rating (Equivalent to impact of 5kg mass dropped from 400 mm above impacted surface)


Features:

· Robust construction (IK10 Impact rating)

· Easy Setup

· Self diagnostics with automatic testing of external sensor

· Easily coupled with Prestart Warning (CS-PSW20) for visual audible warning)

· Onboard communications (standard)

· Programmed with anti-sabotage logic to prevent forced sustained reset.


documentation Downloads

CS-BRT Brochure March 2021 V3 (pdf)Download
CS-BRT20 Belt Rip Detector Quick Start (pdf)Download
CS-BRT20 Belt RipTear User Manual (pdf)Download

Software Downloads

BRT_Example_V19 (zip)Download
