Pre-start warning and siren

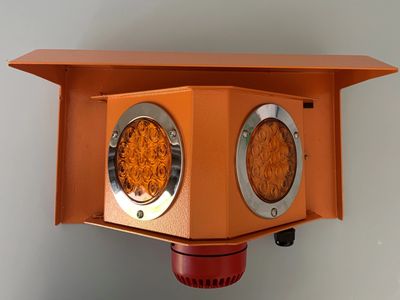

The CS-PSW20 Pre-start Warning unit provides a highly effective means to generate both prestart and abnormal situation warnings. The unit provides both visual and audible warnings via high intensity LED’s and siren. It can be easily integrated into your control system via Ethernet IP, Modbus TCP or alternately via hardwiring. These communications options are standard on all units.

The CS-PSW20 is designed to be able to operate independently of any external control so provides a perfect solution for any standalone applications. External abnormal conditions can be used to trigger the unit in a variety of different modes via integrated onboard inputs.

Application:

These units are typically applied across industrial operations to provide pre-start warning for conveyor belts, pump stations, ventilation fans, compressors, milling, crushing, fire and alarm. The multitude of configurable operational modes makes it suitable for most applications requiring visual and audible warnings.

The units are designed for both AC and DC Power supplies thereby reducing required spares holding. They are modular in design so are easily serviced.

Features:

· Robust construction

· Two highly visible LED lights (110mm) available in Amber, Red or Green

· 32 tone Siren (120dB at 1m)

· 16 Pre-programmed operating modes

· Onboard communications (standard)
